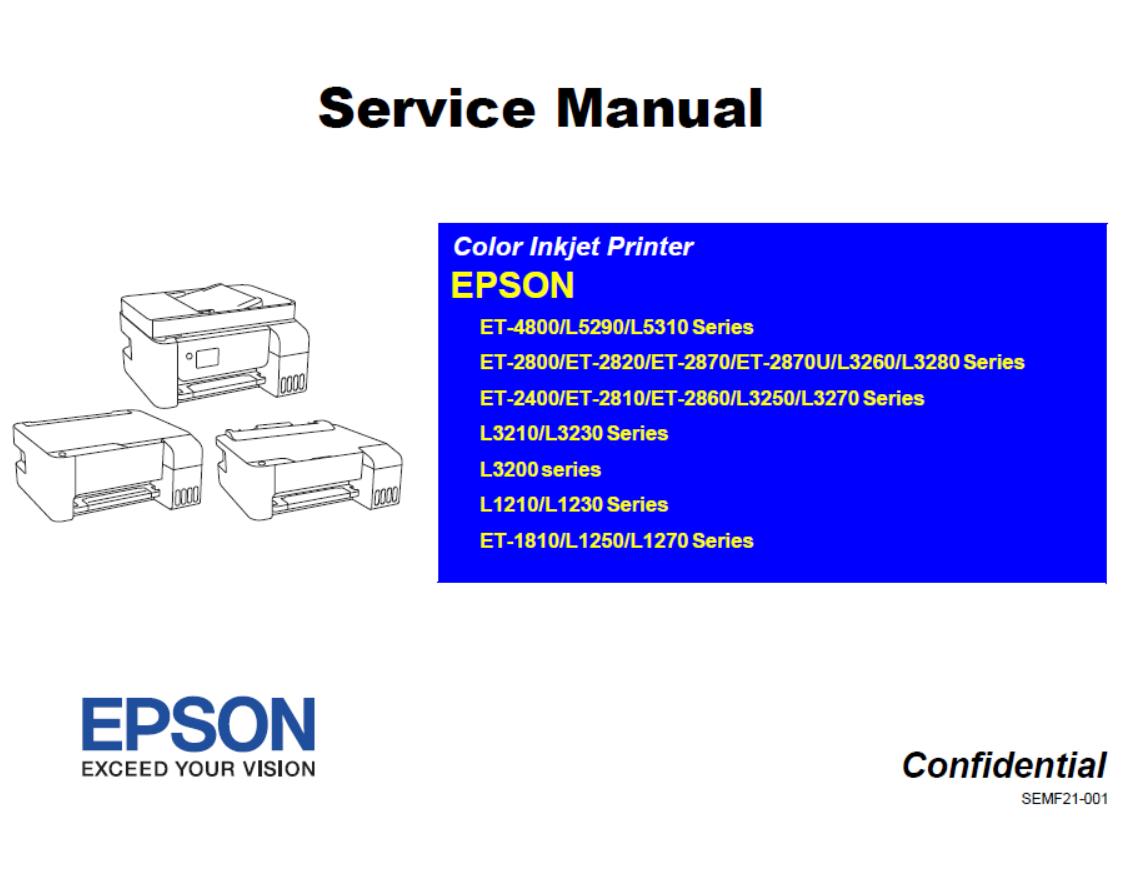

Epson ET-1810/2400/2800/2810/2820/28704800/L1210/L1230/L1250/L1270/L3200/L3210/L3230/L3250/L3260/L3270/L3280/L5290/L5310 Service Manual

Epson ET-1810/2400/2800/2810/2820/28704800/L1210/L1230/L1250/L1270/L3200/L3210/L3230/L3250/L3260/L3270/L3280/L5290/L5310 Service Manual
Epson Color Inkjet Printer ET-4800/L5290/L5310 Series/ET-2800/ET-2820/ET-2870/ET-2870U/L3260/L3280 Series/ET-2400/ET-2810/ET-2860/L3250/L3270 Series/L3210/L3230 Series/L3200 series/L1210/L1230 Series/ET-1810/L1250/L1270 Series Service Manual

This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

Contents:
CHAPTER 1. OPERATING PRINCIPLES
Describes the electrical and mechanical basic operating principles of the product.
CHAPTER 2. TROUBLESHOOTING
Describes the step-by-step procedures for the troubleshooting.
CHAPTER 3. DISASSEMBLY/ASSEMBLY
Describes the disassembly/reassembly procedures for main parts/units of the product, and provides the standard operation time for servicing the product.
CHAPTER 4. ADJUSTMENT
Describes the required adjustments for servicing the product.
CHAPTER 5. MAINTENANCE
Describes maintenance items and procedures for servicing the product.
CHAPTER 6. APPENDIX
Provides the following additional information for reference:
• Connector Diagram
• Protection for Transportation

Only numbered Service Parts are available
Details
SKU SKU901214
How Download?..................... We have a FAQ!
Pages: ................................. 170
Format: ................................ PDF document
Packing: ............................... ZIP-Archive
Language: ............................ English

Our price: $9.95 (€7.96)
Options
Quantity 1 (this product is downloadable)
Download Size 34.32MB
Download Time
2 minutes @ 1.8mbs
[Change Connection Speed]
